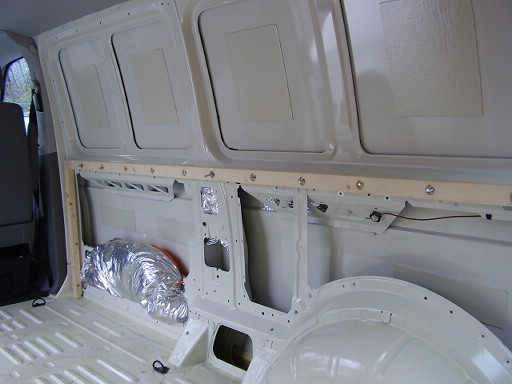

This photo shows the height of the side rail
that will support the sleeping platform. This is also the stage where
it nearly all went wrong. PAY ATTENTION NOW! My big mistake was to
assume I could slot the platform in above the rails at a diagonal and
then push it down onto the rails. However I'd failed to take account of
the van narrowing above the point where I'd bolted the rail in. I failed
Geometry 101. All looked good at this stage. I discovered the big
problem later.
